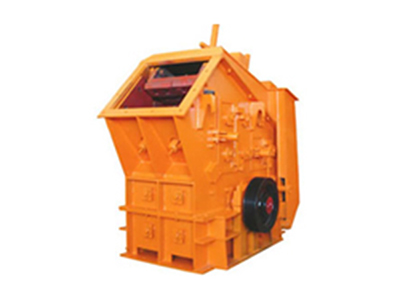

The single-rotor impact crusher is a kind of highly efficient crushing machine widely used to crush ores, rocks and some other materials whose size is not more than 120-350mm. It can be applied in cement industry, chemical industry, and mineral dressing, etc.
The compression strength of the materials to be crushed should be 350MPa at most. Characteristics of our impact crusher include small size, high crushing efficiency, low power consumption, and high reduction ratio, etc.
Parameters of Impact Crusher
| Model | Rotor diameter ×width(mm) | Feeding size (mm) | Discharging size (mm) | Production capacity (t/h) | Motor Power (kw) | Weight (t) excluding motor |
| TC-0607 | 644×740 | <100 | 10~30 | 5~15 | 30 | 4 |
| TC-0807 | 850×700 | <120 | 10~40 | 15~30 | 45 | 8 |
| TC-1007 | 1000×700 | <300 | 10~40 | 30~50 | 30-75 | 9.5 |
| TC-1010 | 1000×1050 | <350 | 10~40 | 50~80 | 50-90 | 12 |
| TC-1210 | 1250×1050 | <350 | 10~40 | 70~120 | 110-160 | 14 |
| TC-1013 | 1000×1300 | <400 | 10~40 | 80~120 | 110 | 12 |
| TC-1214 | 1250×1400 | <350 | 10~40 | 90~145 | 130-180 | 18 |
| TC-1315 | 1320×1500 | <500 | 10~40 | 160~200 | 250 | 19 |
| TC-1320 | 1320×2000 | <500 | 10~40 | 250~300 | 375 | 24 |
As a professional impact crusher manufacturer in China, we can provide not only impact crushers, but also cyclone dust collectors, ball mills, rotary kilns, NPK compound fertilizer granulation equipment, urea granulation process equipment, windswept coal mills, organic fertilizer equipment, etc. These products are quite popular with our customers in Singapore, Malaysia, Indonesia, India, Pakistan, Iran, Turkey, Egypt, Nigeria, Saudi Arabia and more.
We have obtained ISO9001:2008 certification and ISO9001:2000 certification, so you can feel secure in using our products.
Please contact us if you are in need of our impact crushers or other cement equipment.
