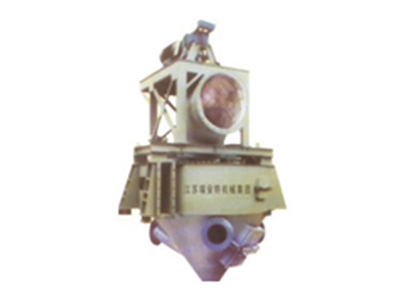

Separator

Separator

Characteristics of HJN type Separator
1. Ourcement separator is characterized by reliable performance and large productivity.
2. If the separator is fitted with special device, steep grading curve can be obtained.
3. This cement separation equipment is mainly used in cement mill. It can process cement in compliance with new cement standard. The fineness and specific surface area of cement are easy to control.
4. With the help of modified cross-section rotor blade, our separator has high grading efficiency and its productivity is increased by more than 50%. While at the same time, the grading area is enlarged and the consumption of electricity is lowered.
5. The rotary speed can be adjusted easily and the grading point can be chosen conveniently. Hence, our separator is applicable to various cement systems.
6. Our separation machine utilizes a large amount of cooling air to lower down the temperature of finished products. High concentration exhaust gas in the system can be also used.
7. This cement equipment is small in size and compact in structure.

Parameters of Separator
Type Cement output T/h Air content T/h Max. processing capacity T/h Main shaft rotating speed (r/min) Standby motors Standby speed-reducer Lubrication station Weight(exclusive of lubrication) Kg
Type Pow-
er(kw)
Rated rotating speed (r/min) Type Speed ratio
HJN-250 9-18 250 37.5 250-550 YCTL250-4B 22 132-1320 Belt Drive XYZ-6 3100
HJN-500 18-35 500 75 265-320 YCTL315-4B 45 132-1320 HWX50 4.05 XYZ-10 6680
750 27-45 750 112.5 180-330 YCTL355-4A 55 440-1320 SD-100T 4.06 XYZ-10 9529
1000 36-60 1000 150 250-285 YCTL350-4B 75 440-1320 SD-100 4.63 XYZ-16 12400
1500 54-90 1500 225 185-240 YCTL355-4C 90 600-1320 JK200B 6.25 XYZ-16 15000
2000 72-120 2000 300 165-210 Z4-225-11 110 1500 NLX-200 7.14 XYZ-25 19400
2500 90-150 2500 375 145-190 Z4-225-31 132 1500 NLX-250 7.89 XYZ-25 24400
3000 108-180 3000 450 135-170 Z4-250-12 160 1500 NLX-300 8.82 XYZ-25 27600
3500 126-210 3500 525 80-175 Z4-250-41 220 1500 JK250-B 7.69 XYZ-40 38500
4000 144-240 4000 600 75-166 Z4-280-11 250 1500 JK320-B 8.55 XYZ-40 42100
4500 162-270 4500 675 70-156 Z4-280-21 280 1500 JK360-B 8.87 XYZ-63 55200
5000 180-300 5000 750 65-147 Z4-280-32 315 1500 JK360-B 10.1 XYZ-63 67963

We are a professional cement production company in China. We can provide not only cement mill separator, but also screw guides, shearing machines, press brakes, fertilizer equipment, etc. We have obtained ISO9001:2000 certification and ISO9001:2008 certification, so you can feel secure in using our products.
We are located near highways and sea ports. This will facilitate the transport of your goods.
Please feel free to contact us if you have any problem.
