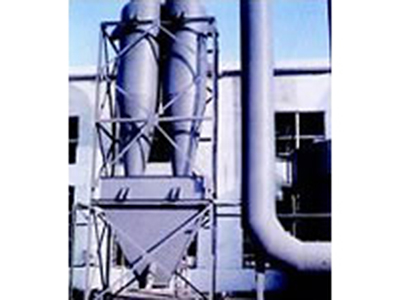

Cyclone Dust Collector
Dust collector is widely used to separate solid particle from air or liquid. In general, there are cyclone dust collectors, inertial separators, fabric filters, wet scrubbers, etc.
An ordinary cyclone dust collector is mainly made up of barrel, cone, inlet air pipe and exhaust pipe. It has a simple structure and is easy to operate.
Characteristics of Cyclone Dust Collector
- Cyclone dust collector is a kind of cement equipment widely used to purify air in construction industry.
- Industrial dust collector is mainly used to collect the large, high concentration non-fibrous dry dust.
- Its air outlet can be X type (Ⅰtype) air outlet where air goes out horizontally and Y type (Ⅱtype) air outlet where the air comes out from the top. The fluid resistance of cyclone dust collector can be different as the outlet way changes.
- The air can be drawn into dust collection equipment from lateral or middle.
|Cyclone drum diameter (mm)||Air flow range (m3/h)||Equipment resistance (Pa)||Dust Collection efficiency (%)||Main characteristics||Remark|
|150-800||250-7130||1200-1900||80-90||cyclone general type||general|
|300-1060||1180-13900||940-1100||75-95||half-spiral curve bypass abruption chamber||general|
|300-1060||1160-11300||700-1700||80-89||spiral curve bypass abruption chamber||general|
|600-1866||3000-60000||790||>80||half-spiral curve bypass abruption chamber||for boiler|
|492-1065||3300-18000||790||85||vortex chamber liner wear-proof dope||for boiler|
|220-3000||550-950||90||vortex chamber liner wear-proof dope||for boiler|
|350-1320||2770-39840||60||92-94||double cyclone lower exhaust||for boiler|
|464-888||3000-10000||800-900||91||horizontal streamline bucket||for boiler|
|150-700||420-920||1000-1500||90||diffusible lower cone||general|
|200-1300||230-9840||550-1650||95||spiral curve abruption long cone||general|
|200-1000||590-14630||650-1700||91||volute bypass long cone||general|
As a professional industrial cyclone dust collector manufacturer and supplier in China, we have more than 50 years of experience in producing cyclone dust collection system, windswept coal mills, impact crushers, brake press, etc.
We have obtained ISO9001:2000 certification and ISO9001:2008 certification, and our products are quite popular in Singapore, Malaysia, Indonesia, India, Pakistan, Iran, Turkey, Egypt, Nigeria and more.
If you are in need of fertilizer equipment, cement equipment or other products, please contact us.
